KVANT Laser Projectors

Clubmax 1000 | 2000

Nominal power: 1W RGB | 2W RGB.
Clubmax 1000 and Clubmac 2000 laser projectors are well suited for indoors event, small shows and nightclubs.
These models are made for both graphics and atmospherics.
The laser is controlled with ILDA connection
»» Clubmax technical sheets

Clubmax FB4 3000 | 3400 | 6000 | 6800 | 10

Nominal power: 3W RGB | 3.4W RGB | 6W RGB | 6.8W RGB | 10W RGB.
Clubmax FB4 laser projectors are well suited for all kind of events and applications, thanks to FB4 controller and to the range of output power available.
Also, the "Saturn 1" upgrade on Clubmax 3000 FB4 enables to reach unbeatable performances with the 90kpps @ 7° scanning speed!
These models are made for both graphics and atmospherics.
The laser can be controlled with Ethernet, Artnet, ILDA, DMX, SD card, thanks to FB4.
»» Clubmax FB4 technical sheets

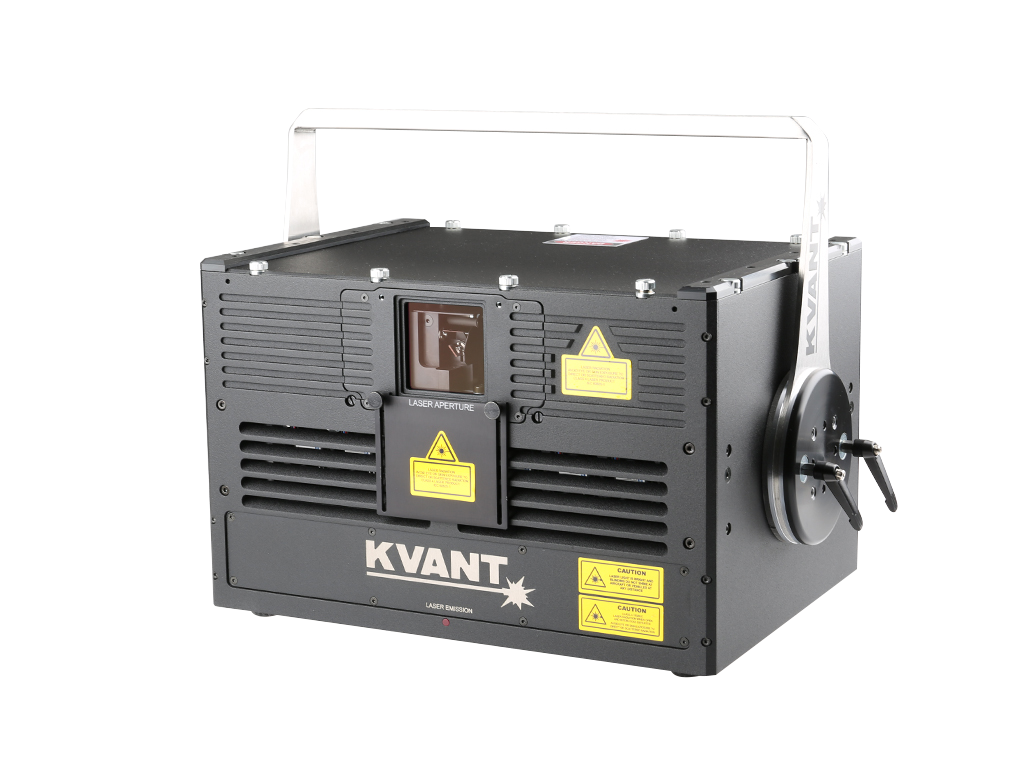

Atom12 | Atom 15 | Atom 20 (LD)

Nominal power: 12W RGB | 15W RGB | 20W RGB.
Atom 12, 15 et 20 laser projectors also include FB4 controller. The output power delivered eneables to fill large rooms, and to animate outdoor scenes. The applications can be graphics as atmospherics.
LD option (Low Divergence) is available on Atom 20 and enables to improve the visibility and brightness of laser beams at long distance.
The laser can be controlled with Ethernet, Artnet, ILDA, DMX, SD card, thanks to FB4.
»» Atom technical sheets

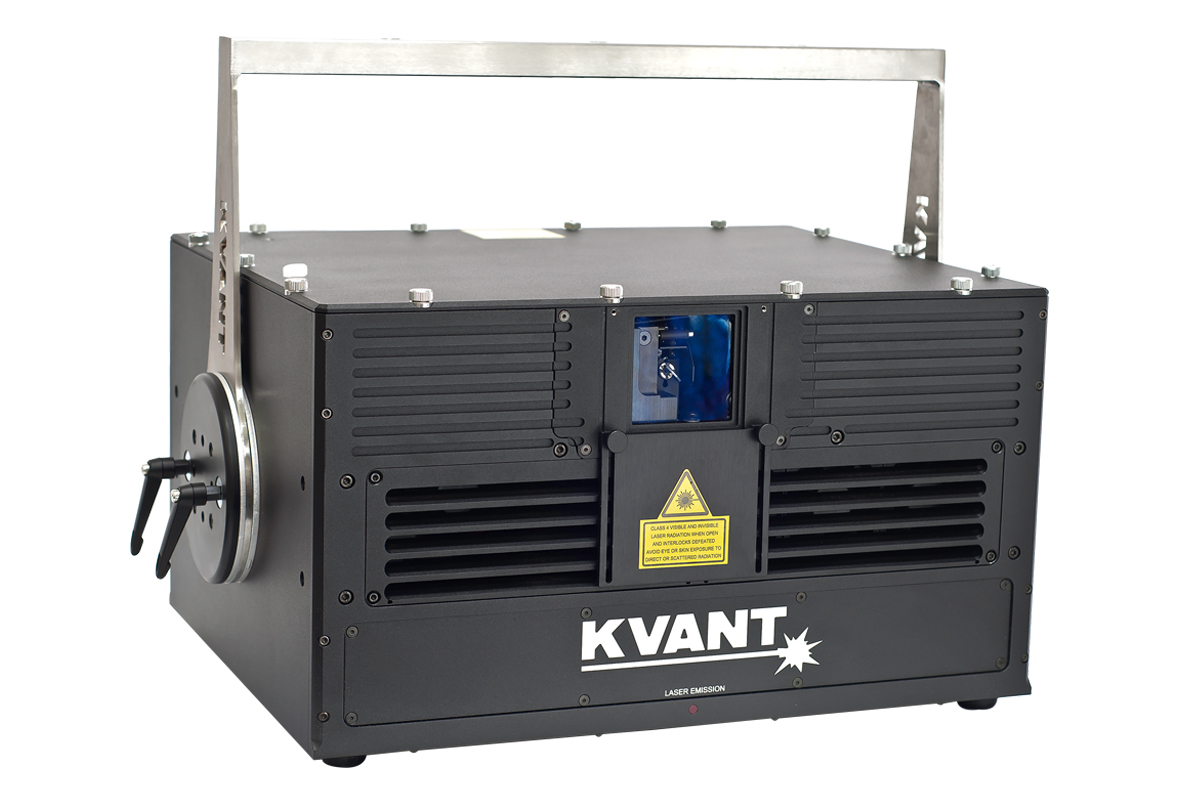

Spectrum 20 | 25 | 25 RGBY | 30 | 33 RGBY · (LD)

Nominal power: 20W RGB | 25W RGB(Y) | 30W RGB | 33W RGBY.
Spectrum laser projectors are the most popular within the high power range of KVANT lasers. This robust system is built for touring and it takes advantage of excellent beam properties based on the OPSL Coherent Taipan and KVANT's mastered semiconductor diode laser modules.
All Spectrum models are also available with LD option (Low Divergence) in order to improve the visibility and brightness of laser beams at long distance.
The laser can be controlled with Ethernet, Artnet, ILDA, DMX, SD card, thanks to FB4.
»» Spectrum technical sheets

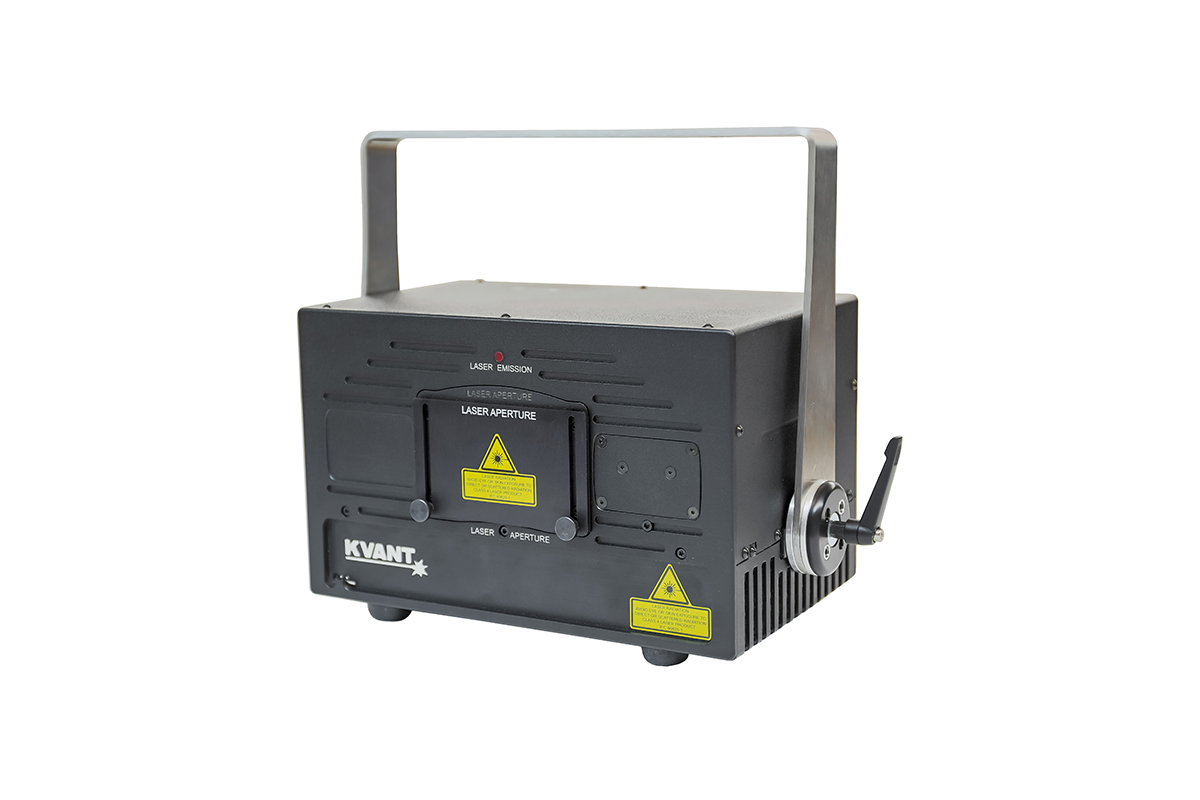

Maxim G900 | G1800 | G3600

Nominal power: 900mW Green | 1800mW Green | 3600mW Green.
Maxim laser projectors are green only. Because of the wavelength used, these lasers have an improved brightness compares to RGB models with an equivalent output power.
The laser can be controlled with ILDA, Ethernet, Artnet and SD card.
»» Maxim technical sheets

Maxim G8000 OPSL | G10 OPSL | G15 OPSL | G20 OPSL

Nominal power: 8W Green | 10W Green | 15W Green | 20W Green.
Maxim laser projectors are green only. Because of the wavelength used, these lasers have an improved brightness compares to RGB models with an equivalent output power.
The KVANT Maxim G8000 OPSL laser display system is based on Coherent OPSL technology meaning top performance with no compromises.
The laser can be controlled with Ethernet, Artnet, ILDA, DMX, SD card, thanks to FB4.
»» Maxim OPSL technical sheets
